Multi-Specialty EA Table

MSRP: $8,520.00

Ergonomic Advantage Line Our EA Line of tables incorporates many ergonomic improvements including all motions being powered, shortening exam times, and making positioning patients easier. All tables come fully assembled with all options installed at Oakworks.

550 lb (250kg) bariatric rated lift & load capacity
Twin tower design for added strength & rigidity
Dynamic 19” - 33” (48-83cm) adjustable height range for wheelchair transfer & ergonomic working heights
Designed by leading Ergonomic Specialists and exceeds the "Industry Standards for Sonography"
Sleek base design promotes unobstructed compatibility with ultrasound equipment ensuring better ergonomic conditions for the sonographer

Fabric

Central Base Locking System

Foot Control

Battery Backup

Side Rails (set of 2)

Procedure Tray

Electric Cardio Panel + Right Access Support Panel

Quantity

Product ID 84797

Included Features
Options
Recommended Accessories
Product Literature & Videos
Images

3 Section Top - 30 in. (76 cm) wide x 72 in. (183 cm) long
Backrest - 34 in. (86 cm) long
Seat - 26 in. (66cm) long
Leg Rest - 11 in. (28cm) long
Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°
Motion 3 - Electric Fowler Backrest 0-75°
Motion 4 - Electric Leg Rest 0-90°
Motion 5 - Electric Access Back Supports [left & right]
Controls - Multi-function hand control
Weight Capacity - 550lb (250kg)
Product Weight - 359lb (163kg)
Removable Padding System - 3 in. (8cm) Comfort Foam™

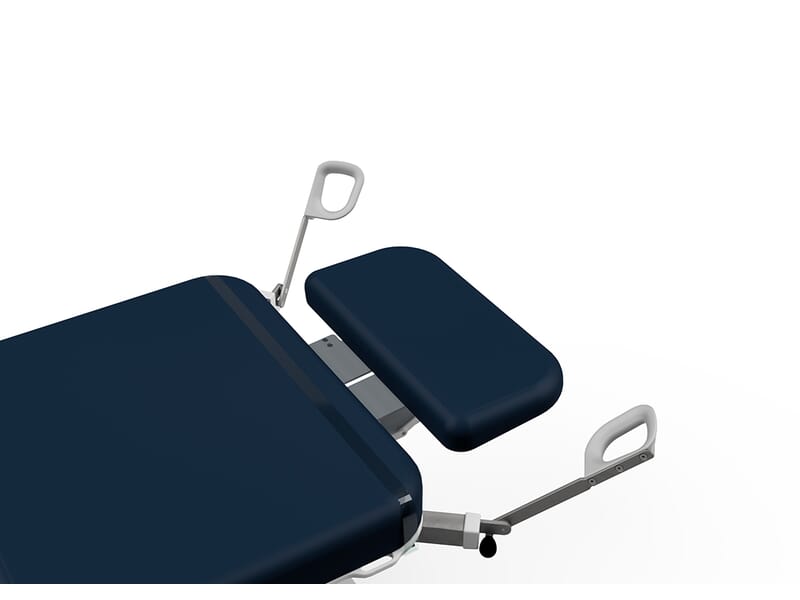

Included Features - 4 in. (10cm) locking casters, paper roll holder, Stirrups
Warranty - 3 years parts, 2 years labor
Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate

Foot Control - Height, Trendelenburg/Reverse, Fowler, Leg Section (H-T-B)
Side Rails - Set of 2: 25.5” (65cm) long x 6” (15cm) tall (from surface of table)

Stools - Durable & comfortable, support 300 lbs., simple pneumatic height adjustments.
Detatchable Arm Board - Use w/ T-Rail adapter 5 in. (13cm) wide x 20.5 in. (52cm) long
T-Rail Adapter - 8 in. (20cm) long. Attached to the backrest for use with USA format T-rail attachable accessories
Table Extender - 24 in. (61cm) wide x 12 in. (30cm) long
QuickLock™ Head Rest (black) & AeroCel Pad - Comfortable, adjustable prone or supine support
